- Ductile iron base plate provides better durability
- Open plate provides self cleaning
- Radius base plate for easy access to corners
- Centrally located lifting bar allows easy transportation
- Sealed belt cover to prevent sand and soil in
The main technical parameters | |||||
| Model | Impact Number(Hz) | Compaction Depth(cm) | Travel Speed(m/min) | Net Weight(Kg) | Package Dimension(mm) |

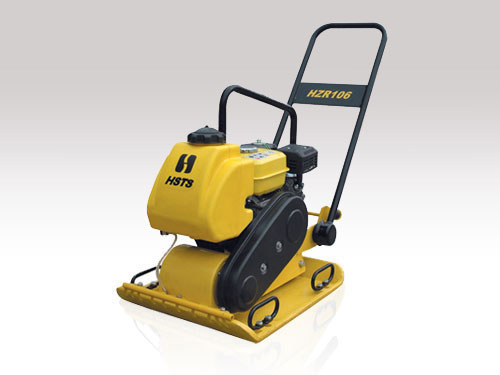

| HZR106 | 90 | 30 | 20 | 106 | 1032×632×788 |
| Mating power | Impact Energy(KN) | Base Dimension(mm) | Power(kw/r/min) | Gross Weight(Kg) | |
| GX160Q/168F | 20 | 500×490 | 3.6/3600 | 126 | |
