- Ductile iron base plate provides better durability
- Open plate provides self cleaning
- Radius base plate for easy access to corners
- Centrally located lifting bar allows easy transportation
- Sealed belt cover to prevent sand and soil in

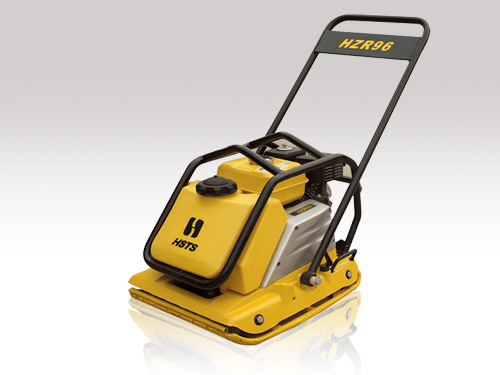

Model | HZR96 |
Impact Number(Hz) | 100 |
Compaction Depth(cm) | 30 |
Travel Speed(m/min) | 20 |
Net Weight(Kg) | 96 |
Package Dimension(mm) | 870×560×735 |

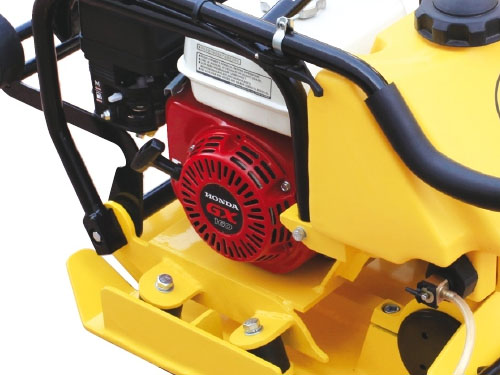

Mating power | GX160Q/168FA |
Impact Energy(KN) | 15 |
Base Dimension(mm) | 580×500 |
Power(kw/r/min) | 3.6/3600 |
Gross Weight(Kg) | 116 |
